FD80 Counterweight Forklift 8000kg 8Ton Loading Weight With Isuzu 68G1 Engine
1. Products Description
In the development of the rough terrain forklift, emphasis is placed on comfort and ease of operation, incorporating features such as improved vibration levels, a compound engine damper, and a full-floating seat and cabin.
Comfortable working conditions also contribute to increased productivity and reduced noise levels.
To achieve maximum productivity, it is vital for a rough terrain forklift operator to be comfortable and in control. We have designed a workplace that optimizes the performance of both operators and machinery.
2. Specification
| Specification | FD80 |
| Rate Loading Weight | 8000 KG |
| Mast Stage | 2 Normal /2 Fully free/3 Fully free |
| Lifting Height | 3000/4000/4500/5000/6000/6500mm |
| Engine Model | Xi chai 4DF3/ Isuzu 68G1 |
| Rate Power | 85 /82.4 KW |
| Transimission | Hydraulic auto 2R,0,2F |
| Fork Size | 920/1070/1220/1500 mm |
| Tire Type | Double front Air tires |
| Front Tire | 9.00-20-14PR |
| Rear Tire | 9.25-20-14PR |
| Overhead Guard Height | 2560 mm |
| Overall Length(with/without fork) | 5345/4125 mm |
| Overall Width | 2260 mm |
Overall Height
(Mast extended/lowered) | 3000mm: 4420/2700 mm |
| Total Weight | 11550 KG |
| Front Overhang | 710 mm |
| Free Fork Height | 155 mm |
Angle of Mast inclination
(forward /backward) | 6°/12° |
| Load Center | 600 mm |
| Ground Clearance | 250 mm |
| Wheel Base | 2280 mm |
| Wheel Track | 1600/1700 mm |
| Minimum Turning Radius | 3430 mm |
| Max.Travel Speed(full loading) | 26 km/h |
| Max. Lifting Speed(full Loading) | 410 mm/s |
| Max. Traction Force(full loading) | 52 KN |
| Maximum Permissible Gradient | 20° |
| Battery | 12V/100Ah*2 |
| Working Pressure | 20 |

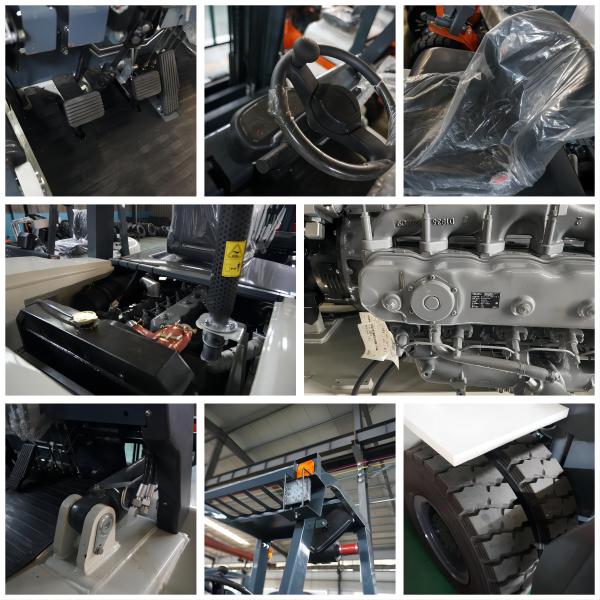

3. Details and Advantages
The FD series prioritizes enhancing reliability and reducing downtime to significantly improve productivity for customers.
The drive axle, wet brake system, and enhanced Okamura gearbox are built with an expected minimum service life of 10 years.
The implementation of a wet axle enhances the reliability of the braking system and force transmission structural parts, incorporating wet brakes, custom high-strength bolts, and a wheel-side planetary reducer.
Additionally, the newly designed aluminum alloy transmission with a full floating structure demonstrates excellent heat dissipation capability, while incorporating more and thicker discs to meet the demands of the most challenging applications.
The instrument panel features a large screen display and adopts an injection molding design, providing sturdiness and durability.
Furthermore, the high-strength chassis, mast, and front/rear axle are designed to ensure the reliability of the truck, even for high-strength applications.
4. Configurations
| 1 | Solid tires
(the Advanced brand or equivalent) |
| 2 | Automatic transmission(1-4.5Ton) |
| 3 | Sideshift |
| 4 | Thicken Toyota seat (no shock absorber) |
| 5 | Toyota seat (with shock absorber) |
| 6 | Fork positioner |
| 7 | Closed cab |
| 8 | Double front tires(1-5Ton) |
| 9 | Normal double mast:3300-4000mm. |
| 10 | Full free double mast:3000-4000mm. |
| 11 | Full free triplex mast:4500-7500mm. |
| 12 | Fork length:920/1370/1550 mm |
| 13 | Extension fork |
5. Attachment
We are dedicated to providing a VIP forklift solution that can be customized to meet various work conditions, offering customization options for the MCLLROY forklift, including the paper roll clamp, rotating bale clamp, load stabilizer, multi-drum clamp, bale clamp, drum clamp, dumping clamp, crane arm, string pole, sideshifter, rotating forks, fork extender, load release device, carton clamp, push-pull device, bucket, hook, and lengthened forks.
